Ultrasound stickers that can see into the body have been created by MIT engineers

New stamp-sized ultrasound adhesives provide clear pictures of the heart, lungs, as well as various other interior body organs.
 |  Borena Kuliashvili  | 

New stamp-sized ultrasound adhesives provide clear pictures of the heart, lungs, as well as various other interior body organs.

When medical professionals require real-time pictures of an individual’s interior body organs, they typically resort to ultrasound imaging for a risk-free as well as noninvasive home window right into the body’s operations. In order to catch these informative photos, experienced service technicians adjust ultrasound sticks as well as probes to guide acoustic waves right into the body. These waves mirror back out as well as are utilized to generate high-resolution pictures of an individual’s heart, lungs, as well as various other deep body organs.

Ultrasound imaging presently needs cumbersome as well as specific tools readily available just in medical facilities as well as medical professional’s workplaces. Nevertheless, a brand-new layout established by MIT designers could make the modern technology as wearable as well as obtainable as getting Band-Aids at the pharmacy.

The designers provided the layout for the brand-new ultrasound sticker label in a paper released on July 28 in the journal Scientific research. The stamp-sized gadget adheres to skin as well as can give constant ultrasound imaging of interior body organs for 2 days.

To show the development, the scientists used the sticker labels to volunteers. They revealed the tools created real-time, high-resolution pictures of significant capillary as well as much deeper body organs such as the heart, lungs, as well as tummy. As the volunteers executed different tasks, consisting of resting, standing, running, as well as cycling, the sticker labels kept a solid bond as well as remained to catch adjustments in underlying body organs.

In the present layout, the sticker labels have to be attached to tools that equate the mirrored acoustic wave right into photos. According to the scientists, the sticker labels can have prompt applications also in their present kind. As an example, the tools can be put on people in the medical facility, comparable to heart-monitoring EKG sticker labels, as well as can continually photo interior body organs without needing a specialist to hold a probe in position for extended periods of time.

Making the tools function wirelessly is an objective the group is presently pursuing. If they achieve success, the ultrasound sticker labels can be made right into wearable imaging items that people can take house from a medical professional’s workplace or perhaps purchase a drug store.

“We envision a few patches adhered to different locations on the body, and the patches would communicate with your cellphone, where AI algorithms would analyze the images on demand,” says the study’s senior author, Xuanhe Zhao, professor of mechanical engineering and civil and environmental engineering at MIT. “We believe we’ve opened a new era of wearable imaging: With a few patches on your body, you could see your internal organs.”

A sticky concern
To photo with ultrasound, a specialist initially uses a fluid gel to an individual’s skin, which acts to transfer ultrasound waves. A probe, or transducer, is after that pushed versus the gel, sending out acoustic waves right into the body that resemble off interior frameworks as well as back to the probe, where the resembled signals are equated right into aesthetic photos.

For people that call for extended periods of imaging, some medical facilities use probes fastened to robot arms that can hold a transducer in position without tiring, however the fluid ultrasound gel streams away as well as dries gradually, disturbing long-lasting imaging.

In recent times, researchers have actually checked out layouts for elastic ultrasound probes that would certainly give mobile, inconspicuous imaging of interior body organs. These layouts provided a versatile variety of small ultrasound transducers, the suggestion being that such a gadget would certainly extend as well as satisfy an individual’s body.

However these speculative layouts have actually created low-resolution photos, partly because of their stretch: In relocating with the body, transducers change area about each various other, misshaping the resulting photo.

An inside appearance
By matching an elastic sticky layer with an inflexible variety of transducers, the MIT group’s brand-new ultrasound sticker label generates greater resolution photos over a longer period. “This combination enables the device to conform to the skin while maintaining the relative location of transducers to generate clearer and more precise images.” Wang states.

The gadget’s sticky layer is made from 2 slim layers of elastomer that envelop a center layer of strong hydrogel, a mainly water-based product that conveniently sends acoustic waves. Unlike standard ultrasound gels, the MIT group’s hydrogel is flexible as well as elastic.

“The elastomer prevents dehydration of hydrogel,” says Chen, an MIT postdoc. “Only when hydrogel is highly hydrated can acoustic waves penetrate effectively and give high-resolution imaging of internal organs.”

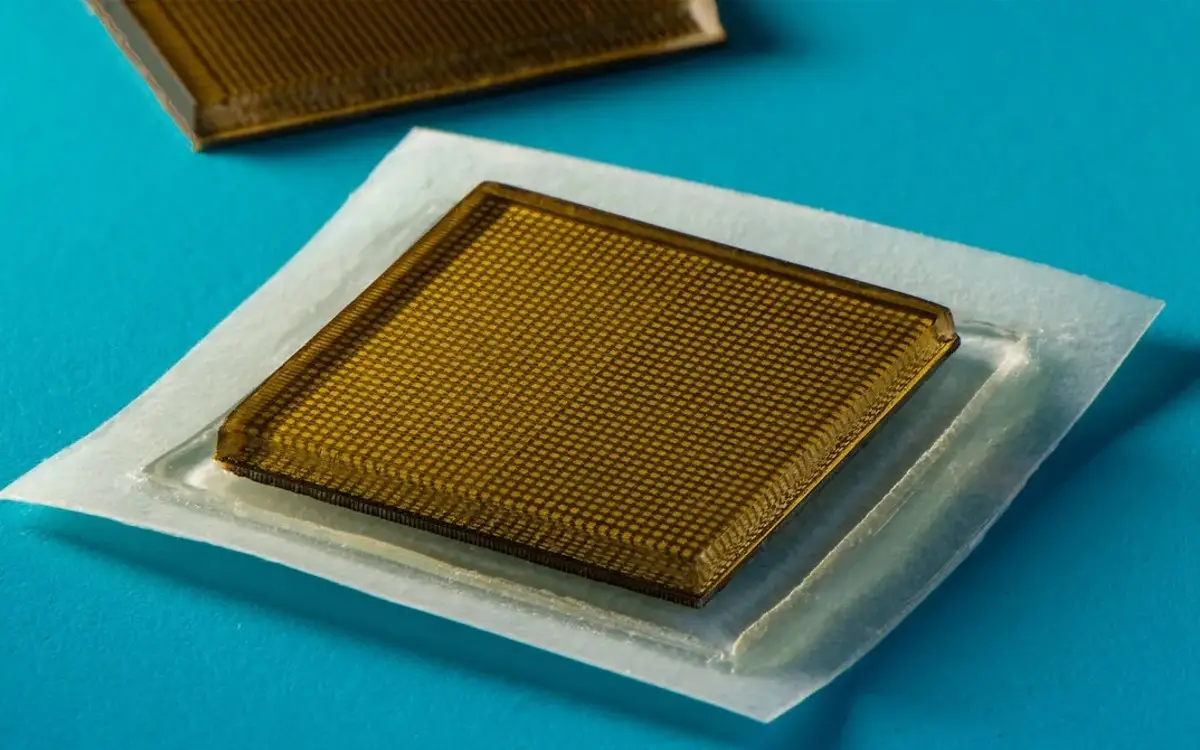

The lower elastomer layer is created to stay with skin, while the leading layer complies with an inflexible variety of transducers that the group likewise created as well as made. The whole ultrasound sticker label gauges concerning 2 square centimeters throughout, as well as 3 millimeters thick– concerning the location of a shipping stamp.

The scientists ran the ultrasound sticker label with a battery of examinations with healthy and balanced volunteers, that put on the sticker labels on different components of their bodies, consisting of the neck, breast, abdominal area, as well as arms. The sticker labels remained connected to their skin, as well as created clear pictures of underlying frameworks for approximately 2 days. Throughout this moment, volunteers carried out a range of tasks in the laboratory, from resting as well as standing, to running, cycling, as well as raising weights.

From the sticker labels’ photos, the group had the ability to observe the transforming size of significant capillary when seated versus standing. The sticker labels likewise caught information of much deeper body organs, such as exactly how the heart adjustments form as it applies throughout workout. The scientists were likewise able to view the tummy distend, after that shrink as volunteers consumed alcohol after that later on passed juice out of their system. And also as some volunteers raised weights, the group can discover brilliant patterns in underlying muscular tissues, indicating short-lived microdamage.

The design group is functioning to make the sticker labels operate wirelessly. They are likewise creating software application formulas based upon expert system that can much better translate as well as detect the sticker labels’ photos. After that, Zhao imagines ultrasound sticker labels can be packaged as well as acquired by people as well as customers, as well as utilized not just to keep an eye on different interior body organs, however likewise the development of growths, along with the advancement of unborn children in the womb.

“With imaging, we might be able to capture the moment in a workout before overuse, and stop before muscles become sore,” says Chen. “We do not know when that moment might be yet, but now we can provide imaging data that experts can interpret.”
